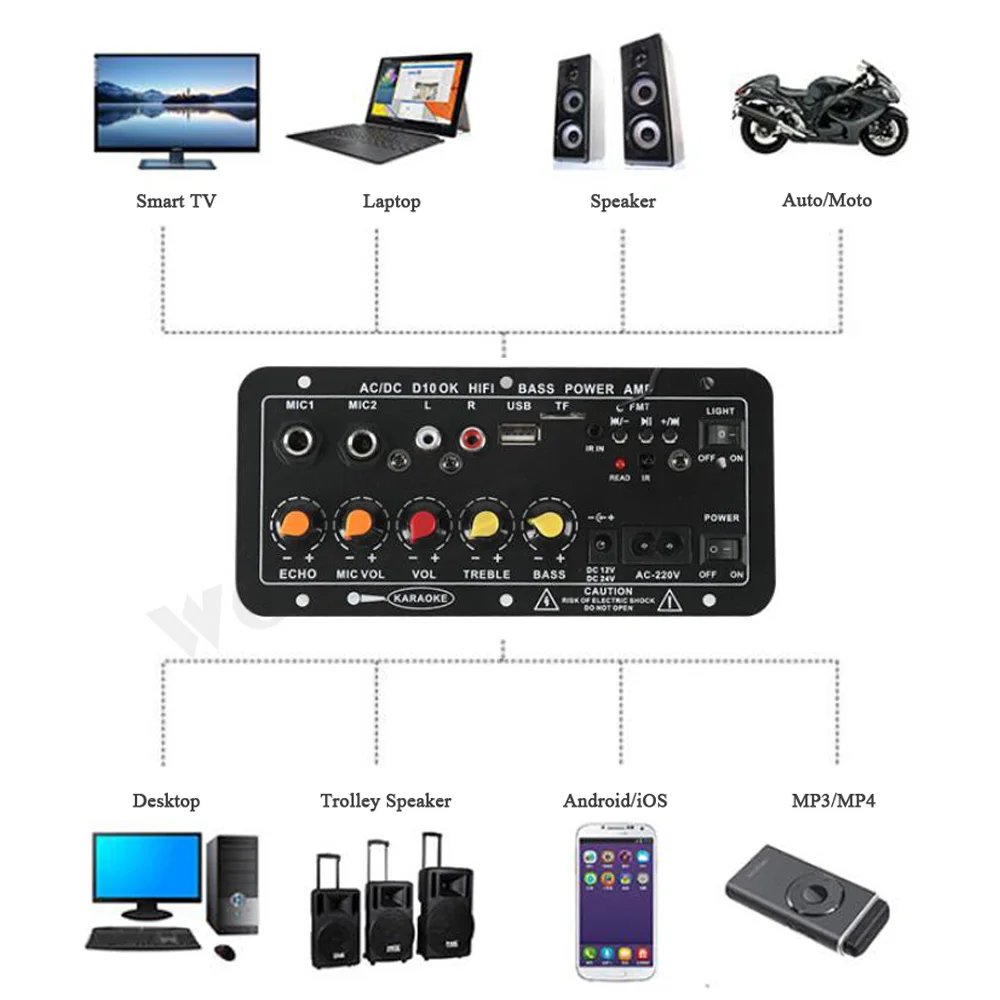

Feature:

- Support reading MP3 songs in TF-card / U-disk.
- Independent adjustment of Treble, Bass and Master volume.
- Built-in Bluetooth Receiver and FM Radio Function.
- With AUX input Port, can be connected to the PC / Phone / CD.
- Peak power 400W, can drive 4Ohm 100 magnetic speakers.
- Dual microphone input, adjustable reverb.
- Support Working Voltage AC 220V or DC 12V / 24V.

How to Connect Bluetooth ?

1. Press “MODE” button to switch it to Bluetooth status.
2. Open phone Bluetooth, search the Bluetooth device and connect.
3. You can use it after pairing successfully.

How to use Radio ?

1. Hang up the Radio Antenna.
2. Press "MODE" button to switch it to the radio state.
3. Press the "Play" button to search the entire channel and save.
4. Press the previous / next track to switch to use.

TIPS: This is not professional radio, no good effect, pls understand!

Power Wiring Instruction :

1. The DC12V/24V Port can be connected to DC 12V-24V, the Current needs more than 3A (Available battery / power adapter).
2. The AC 220V Port can be connected to AC 200-240V.

Warning: Pls select only one connection method !!!

Audio Wiring instruction :

1. For subwoofer - Connect speaker about 100 magnets or 100W.
2. For Tweeter - Connect to 30W tweeter (can also be disconnected, pls add a capacitor when connect).
3. Suitable for 8-12 inch speakers.

Notice:

Please turn off the small master volume before test, then increase the volume slowly after power-on.

-> If the sound is intermittent or hoarse and distorted during increasing the volume, it means the speaker and amplifier are not matched. Please use small sound or change a suitable one.

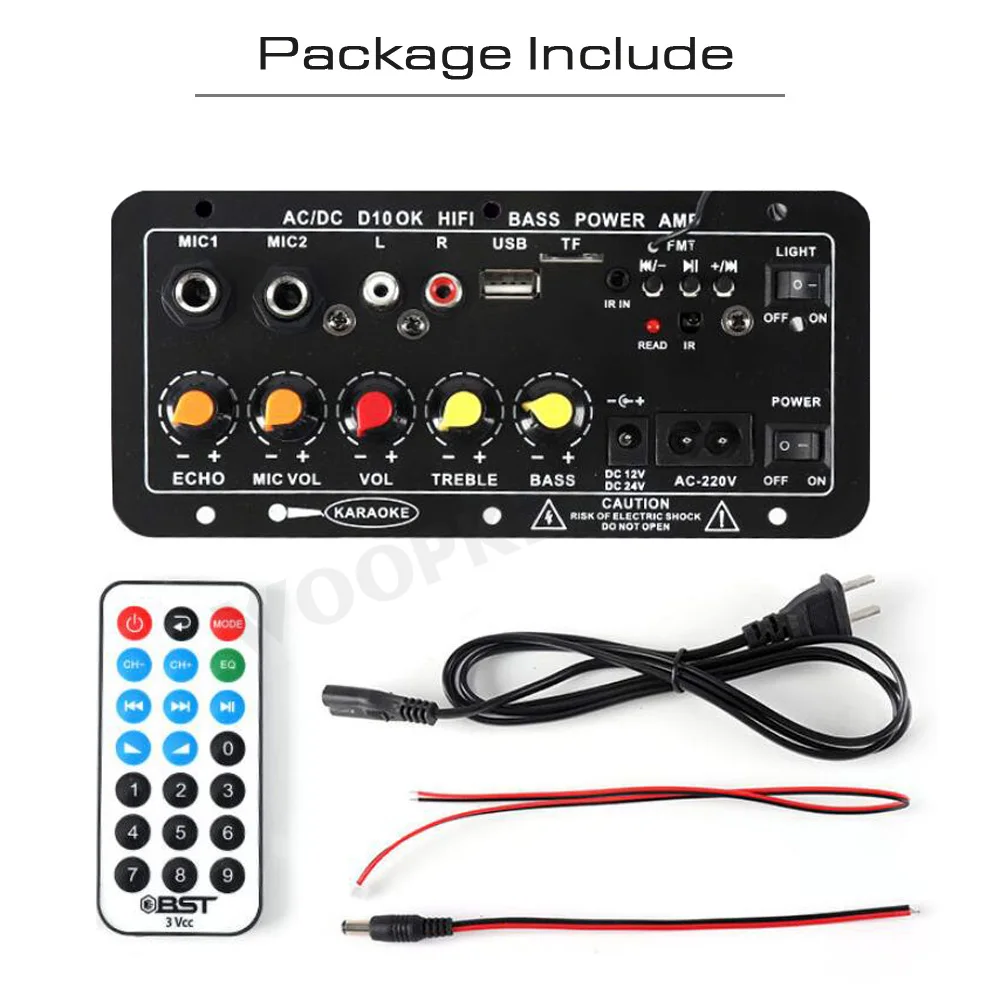

Package Include:

1 x Amplifier Board
1 x Remote Control
2 x Audio Cable
1 x Power Cable
(Note: Battery is not included, Pls buy it by youself)
